TiO2(Rutile)

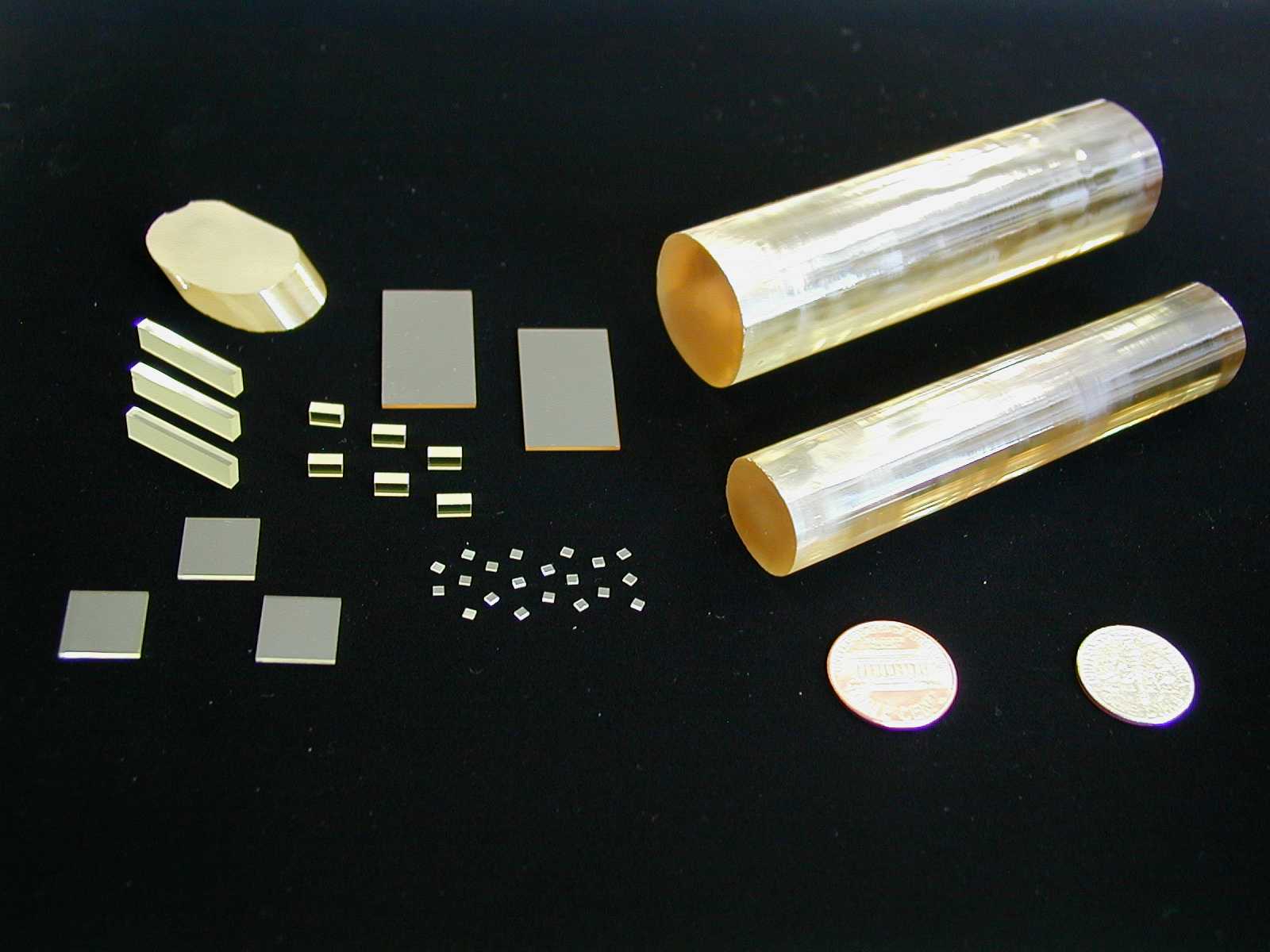

TiO2(Rutile type) is a stable status of titanium oxide with excellent optical and chemical properties. It has a very high refractive index and strong light reflectance, making it one of the best materials for spectroscopic prisms, optical isolators, and polarizing devices. Our TiO2 single crystals are grown by using FZ method and are ideal for use as optical components and epitaxial thin film substrates.

Features
　●High refractive
      index		 Higher refractive index than diamond

Specification
　　Crystal size 17.8mm dia x　～80mmL
　　Growth direction (001)
　　Remarks Please contact us for other specifications.

Crystal properties
　　Crystal system Tetragonal
　　Density 4.26g/cm3
　　Lattice constant a=4.593Å c=2.958Å
　　Refractive index
　　(at630nm)		 no=2.583　ne=2.865
　　　　*The value of crystal physical properties is not guaranteed values.
