Optical Floating Zone Furnace(Shaft seal:O-ring type)
| Feature： | Crystal Systems Co. has succeeded in developing a four mirror optical floating zone furnace. Temperature distribution around the horizontal plane can be drastically homogenized and can be applied to the growth of high-quality single crystals. |
)

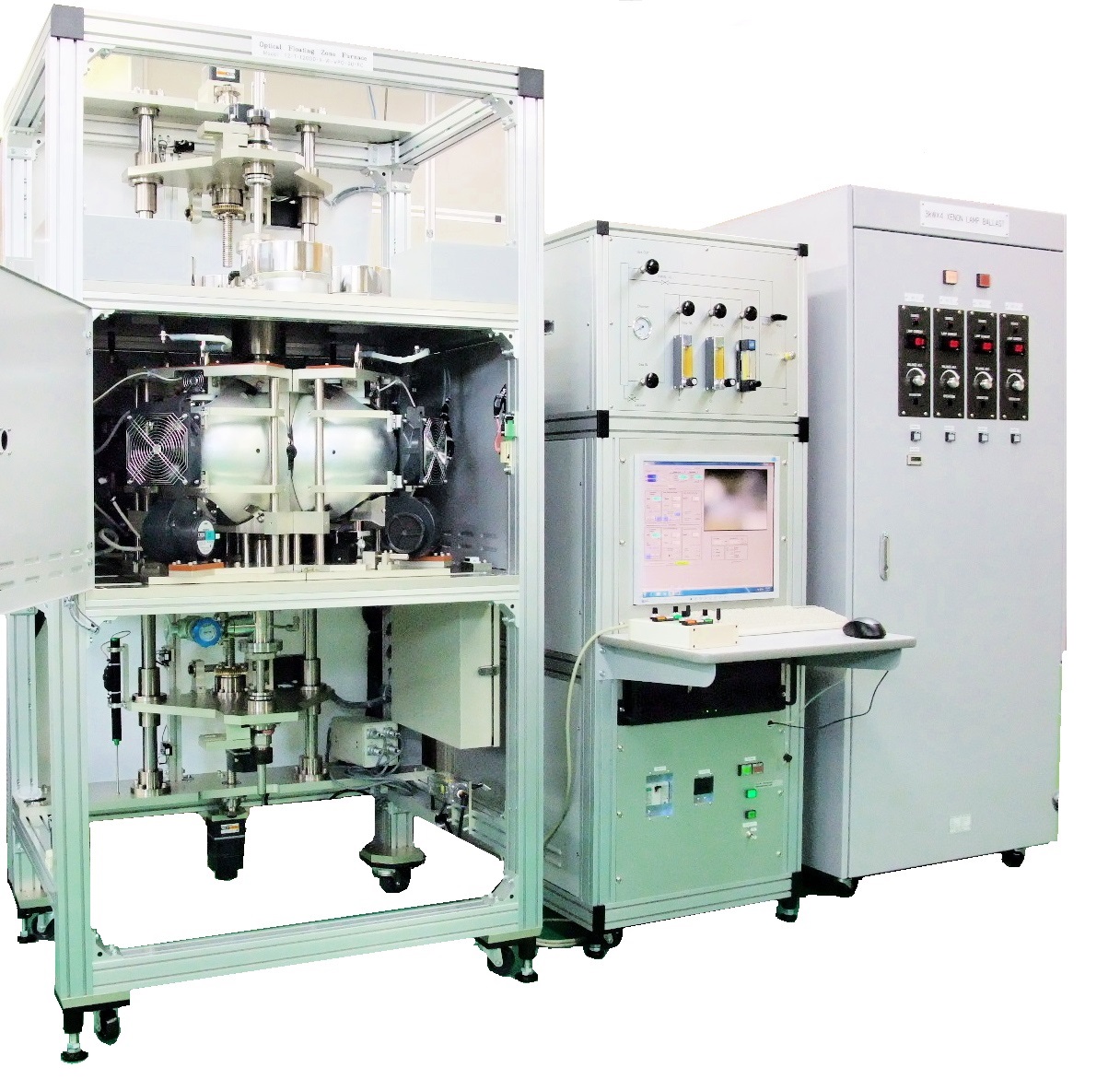

FZ-T-10000-H-VIII-VPO-PC
See a larger image

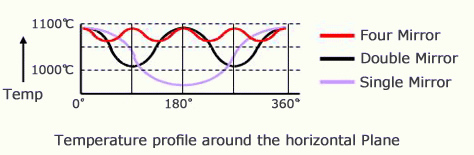

(1) Stable temperature profile by using the four mirror system
 |
(2) Various Lamps for your materials
 |
Halogen Lamps（For Desktop, Standard, Large types） The most suitable lamps for your materials can be selected from various power lamps. 150W, 300W, 500W, 1,000W and 1,500W lamps are available. |
 |
Xenon Lamps for high temperature furnaces |
(3) Wide Range Operational Conditions
| Easy flow rate control and pressure control from high vacuum (6.7 x 10-3Pa) to high pressure (0.95MPa) by using a unique sealed system. |
(4) Remote cotrol with PC
 Operation Screen |
■ Products Lineup and Catalogues download
You will need Adobe Reader to view PDF files.You can download the Adobe Reader for free from Adobe's website. Click the icon below. If you have more questions about our products, please feel free to contact us via e-mail.
|
| Copyright Notice No portion of these files may be used, in either electronic or print form, for commercial purposes without the written permission of Crystal Systems Corporation. Due to ongoing product development and technical enhancements, Crystal Systems Co. reserves the right to change technical specifications. |
| FZ-T-2000-H Space Saving Type |
FZ-T-4000-H Standard Type |
FZ-T-10000-H High Power Type |
FZ-T-12000-X Super High Temp Type |
 |
 |
 |
 |
 |
|
|
