High Temperature MoSi2 Electric Furnace

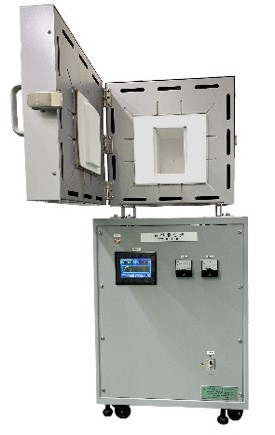

Box Furnace(BF)
BF-1800
* Max temp  1800℃
* Size
   520w×525d×1450hmm
* Chamber
   150w×150d×150hmm
* Power  1-phase 200V30A

-1700
* Max temp    1700℃
* Size
   400w×400d×1000hmm
* Chamber
   100w×130d×150hmm
* Power  1-phase 200V20A
Atmosphere Gas Precision Control Horizonal Rotating Furnace (HF-1800-RT)
* Max temp 1800℃
* Chamber   Φ42×Φ35
* Sample plate (alumina)
    Φ30×120L
*Atmosphere
    MFC three lines
    Program controlled
    (Gas flow and temp are      controlled by PLC)
* Rotation  0~10rpm
* Size
  1200w×630d×1600hmm
* Power  1-phase 200V40A

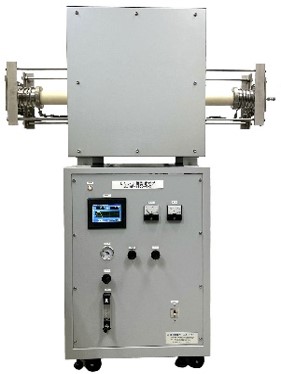

Horizontal Tube Furnace(HF)
HF-1800
* Max temp   1800℃
* Size  960w×630d×1450hmm
* Chamber  Φ60×Φ50mm
* Power  1-phase 200V30A

-1700
* Max temp   1700℃
* Size
   960w×400d×1200hmm
* Chamber  Φ50×42mm
* Power  1-phase 200V20A
Vertical Furnace with Crucible Lifter (VFK-1800)
* Max temp   1800℃
* Furnace Size
      Φ400×500mm
* Flame length   500mm
* Chamber  Φ60×Φ50mm
* Slow moving 1~16mm/hr
* Power  1-phase 200V40A

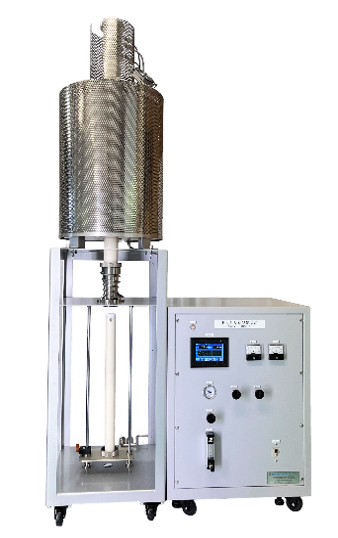

Vertical Tube Furnace(VF)
VF-1800
* Max temp   1800℃
* Furnace Size
       Φ400×760mm
* Chamber   Φ60×Φ50mm
* Size
  1000w×500d×1300hmm
* Power  1-phase 200V30A

-1700
* Max temp   1700℃
* Furnace Size
      Φ350×550mm
* Chamber   Φ50×Φ42mm
* Size
  900w×400d×1000hmm
* Power  1-phase 200V20A

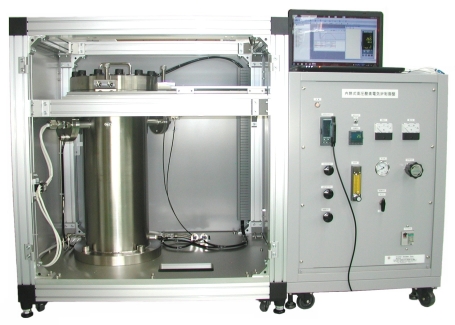

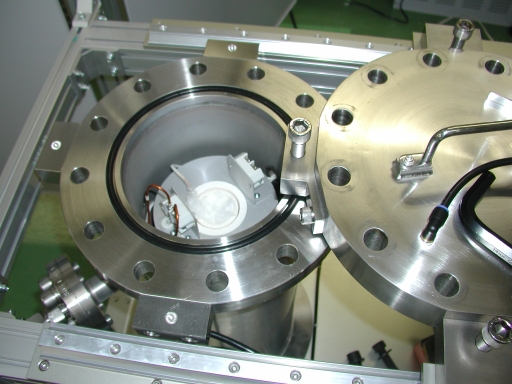

High Pressure Atmosphere Electric Furnace(Core tube locates inside the vessel)
* Max temp  1200℃
* Max pressure   0.99Mpa
* Chamber
    Φ60×Φ50mm
* Vessel
    Φ260×700mm
* Power  1-phase 200V15A

HPF-1300
* Max temp   1200 ℃
* Max pressure   0.99 MPa
* Chamber Φ50 xΦ42
* Vessel Φ175 x 400 L mm
* Power  1-phase 200V 20A
OTHER SPECIALITY FURNACE
 ●Vertical Rotating Furnace  VF-1800-RT
 ● Quench Furnace  VF-1800-Q
 ● 3 zone atmosphere Furnace   HF-1200-M
